Saudi conference interpreting booths & equipment — detailed specification

Detailed technical planning for Saudi onsite and hybrid multilingual events. Final equipment is confirmed by city, venue, language count, capacity and local stock.

Conference interpreting infrastructure

Booths, consoles, language distribution and AV — specified as one system

A multilingual event is only as reliable as its complete signal path. Booths, floor audio, interpreter consoles, language channels, participant receivers, video return, recording, power, network and spares are planned as one technical system.

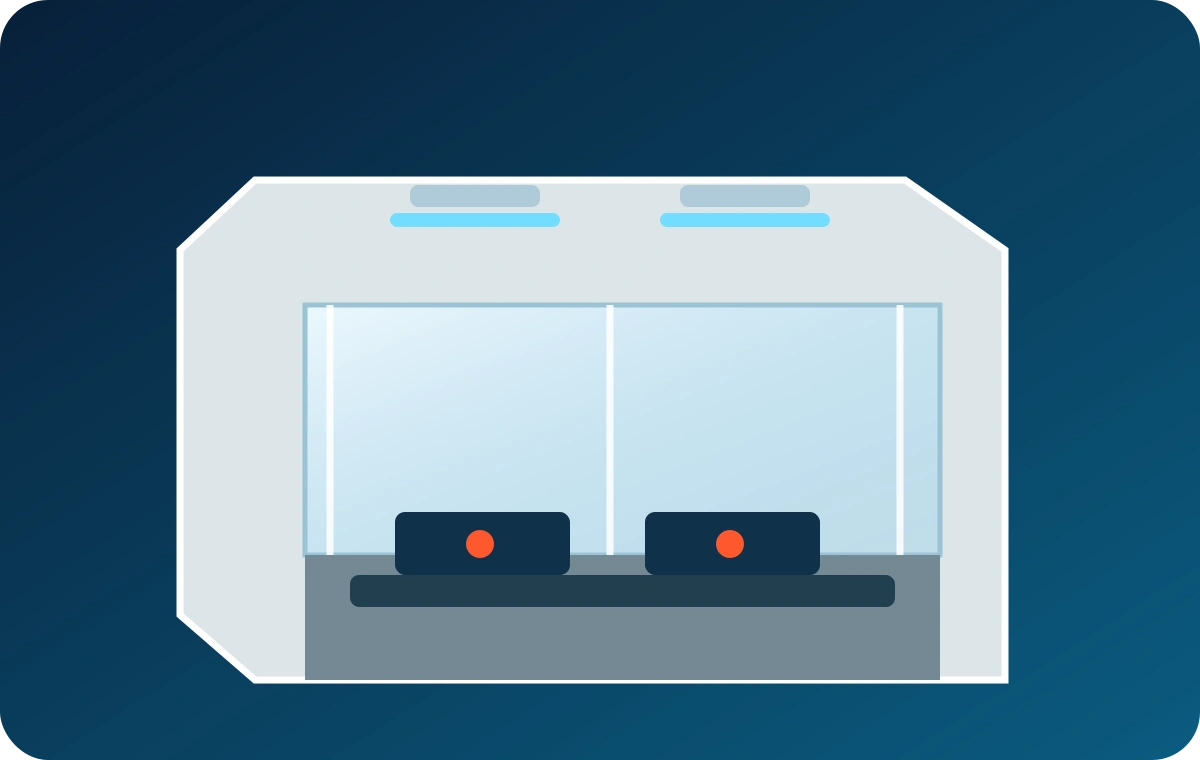

Mobile and permanent interpreter booths

Current planning should reference ISO 17651-1:2024 for permanent booths, ISO 17651-2:2024 for mobile booths, and ISO 20109:2025 for simultaneous-interpreting equipment and the sound/image delivered to interpreters and audiences.

Acoustic isolation and internal absorption suitable for continuous speech work.
Clear sightline to speakers, presentation screens and stage activity; low-latency video return where direct view is insufficient.
Low-noise ventilation, controllable lighting, acoustic worktop and safe cable entry.
Power, data and console positions arranged so interpreters can enter, leave and work without disturbing colleagues.
Booth location coordinated with audience seating, loudspeakers, cameras, emergency routes and venue fire/safety rules.

Up to 2 interpretersMinimum internal planning envelope: 1.60 m × 1.60 m × 2.00 m.

Up to 3 interpretersMinimum internal planning envelope: 2.40 m × 1.60 m × 2.00 m.

Up to 4 interpretersMinimum internal planning envelope: 3.20 m × 1.60 m × 2.00 m.

Equipment families shown on Tasheel Express are reference examples for planning. Final brand, model, quantity and local availability are confirmed after room plan, language count, audience capacity, venue infrastructure and rental/integrator stock are verified.

Complete technical signal chain

Floor capture

Lectern, gooseneck, handheld, lavalier or conference microphones; clean floor feed through mixer/DSP to interpreters.

Interpreter position

One console per interpreter position, professional headset/mic, floor/relay selection, outgoing channels, mute/cough, level and tone.

Language distribution

Digital infrared, wired or IP distribution. Reference families may scale to many channels; Bosch INTEGRUS supports up to 32 audio channels.

Audience reception

Pocket receivers or participant units, headphones/earpieces, labelled channel map, charging, cleaning and an operational spare pool.

Visual return

Direct sightline or low-latency video of speakers, slides and program feed so interpreters can follow gestures, names and visuals.

Recording & streaming

Separate floor/interpretation outputs where required, encoder/streaming interfaces, permissions and clear channel naming.

Power & network

Dedicated power, UPS on critical devices, network switches/PoE where applicable, safe cable management and controlled IP transport.

Redundancy & technician

Spare receivers/headsets, backup microphones, replacement console/interface, power/network spares and onsite interpretation/AV support.

Planning quantities — confirmed after venue survey

BoothsUsually 1 booth per active target language in a conventional onsite simultaneous setup, subject to relay and room design.

Interpreter consolesNormally 1 working console per interpreter position, with spare capability for critical events.

Receivers1 per participant who needs interpretation, plus an operational reserve sized to attendance and turnover risk.

Headsets / earpieces1 per active receiver plus cleaned spares; assistive-listening devices added separately where required.

IR radiators / antennasNumber and placement follow room size, geometry, obstructions, lighting and measured coverage—not a fixed ratio.

TechniciansSized to rooms, languages, hybrid links and changeover complexity; larger events may need dedicated interpretation and AV leads.

Commissioning before doors open

Channel mapTest every language, floor channel, relay route and receiver label end-to-end.

Booth testVentilation, lighting, sightline, console, headset, microphone and relay functions at each position.

Coverage testWalk-test audience listening zones; verify no dead spots/interference and confirm spare receivers.

Audio qualityConfirm gain structure, intelligibility, no clipping/feedback and suitable interpreter listening level.

Video / hybridVerify lip-sync, presentation return, remote audio, mix-minus and fallback connectivity.

ContingencyConfirm spare equipment, batteries/charging, UPS, emergency contacts and replacement procedure.

Reference equipment families — model confirmed after survey

Planning references only: final brand, model and stock are confirmed with the venue and local rental/integration partner.

Bosch

DICENTIS / INTEGRUS

IP-based conference architecture
Interpreter desks and language selection
Digital infrared language distribution
INTEGRUS supports up to 32 audio channels

Televic

Confidea / Lingua / Plixus

Wired, wireless and integrated options
Interpreter-oriented Lingua desks
Language selection, identification and voting options
Networked architecture and redundancy options

Shure

Microflex conference microphones

Conference microphones and speaking control
Installed or wireless options
DSP, recording and hybrid-room integration
Clean floor audio for interpretation

Sennheiser

Listening and accessibility

Personal listening and accessibility
Receivers/headphones for guided or assistive listening
Regional availability confirmed per project

TAIDEN

Digital conference / interpretation

Conference, interpretation, voting and control families
Digital language-distribution options
Fixed or event architectures

Williams AV

Assistive listening / interpretation

Portable or installed listening solutions
Transmitters, receivers and charging ecosystems
Accessibility and language-distribution uses

Event organization, booths and conference equipment

Plan interpretation booths, simultaneous interpreting equipment, conference logistics and technical support. Visual references are illustrative; equipment specification and availability require confirmation.

bosch interpreter console — Bosch Interpreter Console

sennheiser listening set — Sennheiser Listening Set

shure conference microphone system — Shure Conference Microphone System

televic discussion unit — Televic Discussion Unit
